Exprimer EVS A/W Series

Brand: DRTEC, Korea

EVS A series:

EVS 4343A is a truly multi-purpose detector supporting three applications system integrated or integrated into an X-ray system as a multi-frame detector for TOMO and DES application are available.

EVS W series:

EVS W series OLED display provides information for easy visitation of the detector status.  The display enables the user to connect status, detector mode status, number of image acquisition, patient information and battery status for increase workflow efficiency.

Categories ,

Description

EVS W Series Specification

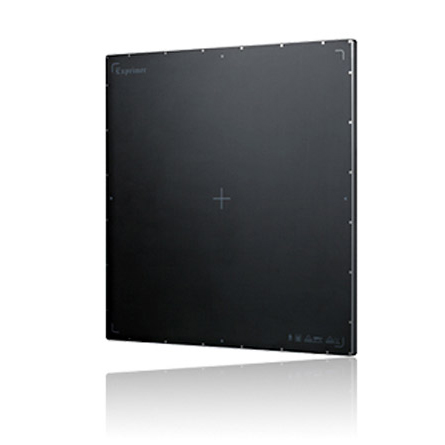

ModelEVS 4343W

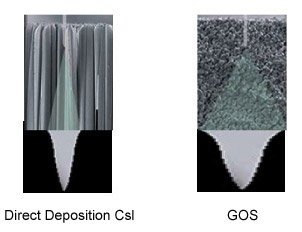

ScintillatorCsl/ Gadox
Active area430 x 430 (mm) / 17 x 17 (inch)
Resolution3,072 x 3,072
Pixel pitch140µm
Dimension460 x 460 x 15 mm
Weight3.45 kg
X-ray syncLossless AED / AWC. Sync trigger
Data interfaceGigabit ethernet (LAN cable)
ADC16 bit
EVS A Series Specification

ModelEVS 3643W
ScintillatorCsl/ Gadox
Active area358 x 430 (mm) / 14 x 17 (inch)
Resolution2,560 x 3,072
Pixel pitch140µm
Dimension386 x 460 x 15 mm
Weight3.00 kg
X-ray syncLossless AED / AWC. Sync trigger
Data interfaceGigabit ethernet (LAN cable)
ADC16 bit
